China napkin production line factory wholesale

  • napkin production line
400m/minAuto Transfer Automatic Napkin Production Line
  • BAOSUO
  • China

1.Production Speed ≧ 450 m/min, 15 times/min/line;
2.Multiple National patents;
3.Fully automatic, all servomotor folding;
4.Automatic counting, 100% accuracy;
5.Double CPU processing, closed cycle feed back control;
6.Stable running, high efficiency productivity;
7.Automatic last sheet folding (outside the machine);
8.Mechanical, electrical and photoelectric control technology, automatic inspection and feedback.

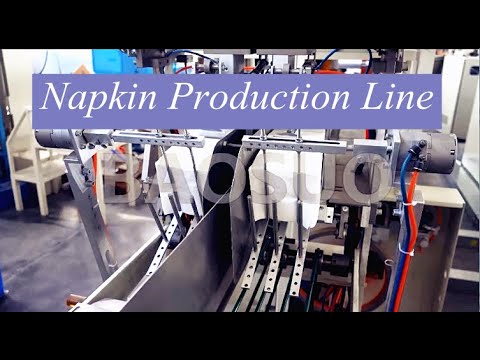

YC-PJ Fully Automatic Napkin Production Line

 napkin production line

Min. Order: 1

Payment term: T/T

Delivery time: 2 ~ 6 months

Shipping port: Foshan



YC-PJ

Jumbo Roll Width

230 ~ 400 mm

Design Speed

500 m/min

Production speed

450 m/min

Folding Type

Mechanical Folding

Finished Size

230 × 230 ~ 400 × 400

Folded Size

115 × 115 ~ 200 × 200 ±2 mm

Jumbo Roll Diameter

φ1500 mm

Jumbo Roll Core Inside Diameter

Φ76.2 mm (For other size please special)

Embosser System

Steel to leather roll, steel to steel, steel to paper

Web Basic Weight (gsm)

Single layer l5 ~ 30 g/m², 1 ~ 3 Layer

Embosser Speed Adjustment

Set on control panel

Pressurizing Mode

Hydraulic

Lubrication Mode

Gear oil lubrication



Automatic Transfer Device

Transfer Function

Servo control lead to automatic transfer.

Sheets Amount Tracking

High-accuracy servo encoder

Transfer Sheet Count Adjustment

Seton control panel

Sheet Count Range

50 ~ 150 sheets

Transfer speed

Maximum 15 times/min/line



Packing Machine Parameter

Design Speed

70 packs/min

Packing type

3D wrapping, sealing on both sides

Packing system

Length  100 ~ 200 mm

Width  95 ~ 105 mm

Height  40 ~ 100 mm



1. Production Speed  450 m/min, 15 times/min/line;

2. Multiple National patents;

3. Fully automatic, all servomotor folding;

4. Automatic counting, 100% accuracy;

5. Double CPU processing, closed cycle feed back control;

6. Stable running, high efficiency productivity;

7. Automatic last sheet folding (outside the machine);

8. Mechanical, electrical and photoelectric control technology, automatic inspection and feedback.
